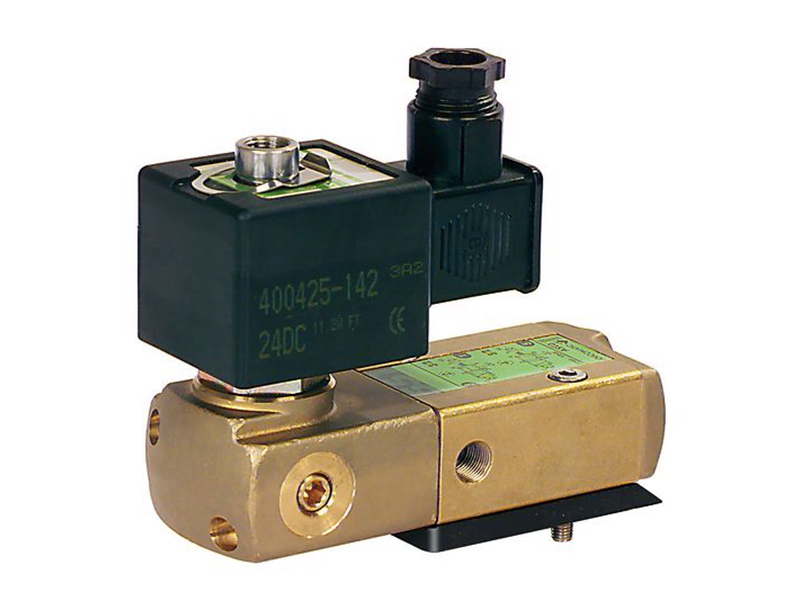

ASCO  电磁阀      8551G421MSDC110/DCD

ASCO 电磁阀 8551G421MSDC110/DCD

ASCO 电磁阀 8551G421MSDC110/DCD

详细介绍

ASCO  电磁阀      8551G421MSDC110/DCD

规格

气门执行电磁阀-空气先导

阀体材料黄铜、不锈钢、铝

介质空气,惰性气体

管道/端口尺寸1/4“

端口类型G ISO228/1-G BSPP , NPTF

功能3路-3/2常闭,4路-5/2 ,4路-5/3-闭心,4路5-3-开心

流量从0.5 Cv到1.0Cv ,从43到.86 Kv

电压24 AC、110 AC、120AC、 220 AC、480AC、 6DC、12 DC、24

DC、120 DC、240 DC |50、60

最大差压/最大工作压力真空至150 PSIG

操作环境腐蚀性、危险性、室内外

标准法规ATEX 1-21区、ATEX2-22区、|类1区、 I类1区,SIL、1型、2型、

3型、3S型、4型、4X型、6型、6P型、7型、9型

温度-60°C至80°C

Specifications

Valve ActuationSolenoid - Air Pilot

Body MaterialBrass, Stainless Steel, Aluminum

MediaAir, Inert Gas

Pipe / Port Size1/4 "

Port TypeG ISO228/1-G BSPP, NPTF

Function3 way - 3/2 Normally Closed, 4 way - 5/2, 4 way - 5/3 - Closed Center, 4 way - 5/3 - Open Center

FlowFrom 0.5 Cv to 1.0 Cv, From .43 to .86 Kv

Voltage24 AC, 110 AC, 120 AC, 220 AC, 480 AC, 6 DC, 12 DC, 24 DC, 120 DC, 240 DC | 50, 60

Max Differential / Max Operating PressureVacuum to 150 PSIG

Operating EnvironmentCorrosive, Hazardous, Indoor, Outdoor

Standards / RegulationsATEX Zone 1-21, ATEX Zone 2-22, Class I Div 1, Class II Div 1, SIL, Type 1, Type 2, Type 3, Type 3S, Type 4, Type 4X, Type 6, Type 6P, Type 7, Type 9

Temperature-60°C to 80°C
