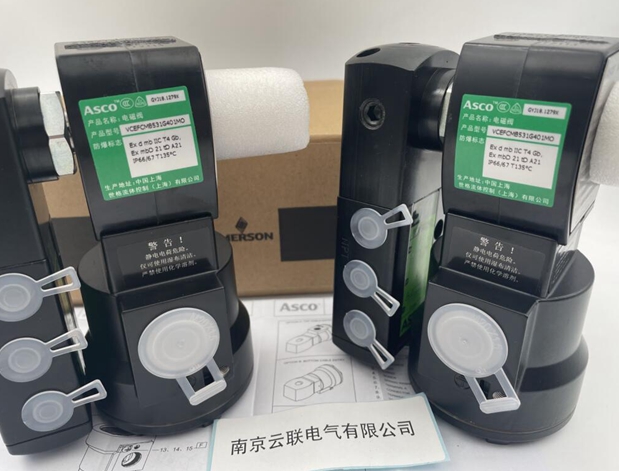

ASCO电磁阀 solenoid valve VCEFCM8531G401MO

ASCO电磁阀 solenoid valve  VCEFCM8531G401MO

 *产品特点：符合IEC 61508系统规范, TÜV认证等级SIL-4；

*功能说明：单线圈滑阀, TÜ V-EXIDA 认证符合IEC 61508系统标准, 等级SIL 4 (551/TÜ V)-SIL 3 (553/EXIDA)。电磁阀与气源螺纹连接, 与气缸之间采用NAMUR安装方式。同一个阀可以通过转接板转为5/2或3/2常闭阀, 控制单作用或双作用气缸。 阀体上所有的排气口均可连接, 以提供更好的防护, 特别适用于区域, 例如洁净室, 药厂和食品厂。阀体提供更好的防护性能, 不易受外界杂质如液体, 灰尘等干扰 (防尘结构)。可通过改动垫片的方向将阀改为外置先导式, 工作压差为0。电磁阀符合相关的EC规范。

*阀体材质：阳极氧化铝, 黑色南京 云联电气

技术咨询njxj888@163.com

Product features: Comply with the IEC 61508 system specification, T Å V certification level SIL-4;

*Function description: Single coil slide valve, T Å V-EXIDA certified according to IEC 61508 system standard, grade SIL 4 (551/T Å V) - SIL 3 (553/EXIDA). The solenoid valve is threaded to the air source and installed with NAMUR between the cylinder. The same valve can be converted into a 5/2 or 3/2 normally closed valve through an adapter plate to control single acting or double acting cylinders. All exhaust ports on the valve body can be connected to provide better protection, especially suitable for areas such as clean rooms, pharmaceutical and food factories. The valve body provides better protective performance and is not easily disturbed by external impurities such as liquid and dust (dustproof structure). The valve can be changed to an external pilot type by changing the direction of the gasket, with a working pressure difference of 0. The solenoid valve complies with relevant EC
