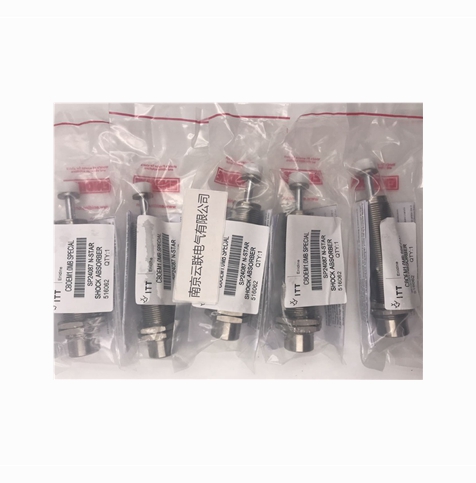

Enidine（安力定）缓冲器​OEM1.0MFB

Enidine（安力定）缓冲器OEM1.0MFB

Enidine（安力定）OEM系列可调缓冲器是工业用标准型。针对各种不同的输入变量（重量、冲击速度、驱动力等）可提供解决方案：通过简单的旋转调节旋钮改变阻尼力的大小使其适应各种情况。该系列缓冲器种类丰富，有广泛的能量吸收能力、大小尺寸、安装类型及其他可选附件。

技术参数范围

外缸径螺纹：M 10X1.0－M 115X2
单次最大吸收能量：5.5J－19200J
冲击速度：0.08m/s－4.5m/s
缓冲行程：7.0mm－250.0mm
LROEM低速可调系列产品可以控制速度低至0.08m/s，而驱动力高达17790N。
性能及优点：
1.可调型设计，可以根据阻尼力大小，并将值锁定。
2.内孔设计，可以在有效的阻尼系数下，减速性能良好，取得在减速器领域中小的反弹力效果。
3.外螺纹缸体，增大散热面积，安装更加灵活
4.专用密封与特种油液的巧妙结合，可以提高标准的工作温度范围：从（-10°C~80°C）扩大到（-30°C~100°C）.
5.各种精加工的表面，保持了原有材质的外观，提供长久的抗腐蚀保护能力。
6.可调参数，使得ENIDINE（安力定）使用范围更广，从低速型到高性能产品。
7.ISO认证标准，产品运行可靠，使用寿命长。.
8.用户自定义的固定节流孔系列产品（CBOEM）可以满足特殊应用需要。

inquiry njxj888@163.com

Endine buffer OEM1.0MFB

Enidine OEM series adjustable buffer is industrial standard type. Solutions can be provided for various input variables (weight, impact speed, driving force, etc.): simply rotate the adjusting knob to change the damping force to adapt it to various situations. This series of buffers has a wide range of energy absorption capacity, size, installation type and other optional accessories.

External cylinder diameter thread: M 10X1.0 － M 115X2

Single maximum absorbed energy: 5.5J － 19200J

Impact speed: 0.08m/s-4.5m/s

Buffer stroke: 7.0mm-250.0mm

LROEM low-speed adjustable series products can control the speed as low as 0.08m/s and the driving force as high as 17790N.

Performance and advantages:

1. Adjustable design, the value can be locked according to the damping force.

2. The inner hole design can achieve good deceleration performance under effective damping coefficient, and achieve small rebound effect in the reducer field.

3. The external thread cylinder block increases the heat dissipation area and makes the installation more flexible

4. The ingenious combination of special seal and special oil can increase the standard operating temperature range from (- 10 ° C~80 ° C) to (- 30 ° C~100 ° C)

5. Various finish machined surfaces maintain the appearance of original materials and provide long-term corrosion resistance.

6. Adjustable parameters enable ENIDINE to be used in a wider range, from low-speed products to high-performance products.

7. ISO certification standard, reliable operation and long service life

8. User defined fixed orifice series products (CBOEM) can meet the needs of special applications.
