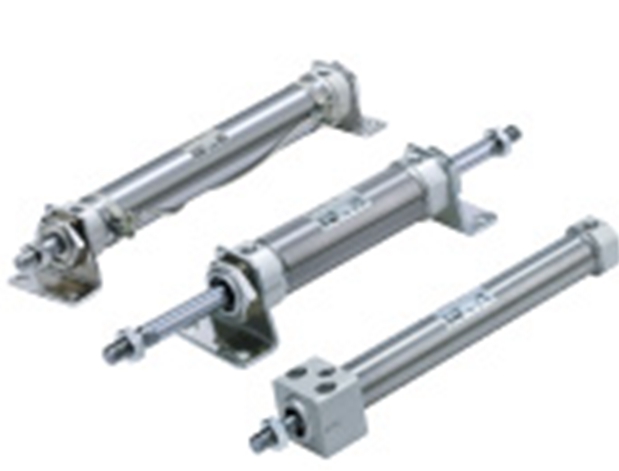

SMC 气缸 CM2/CDM2 cylinder
・杆前端内螺纹标准化。
・磁性开关操作性提高,位置调整更容易。
・追加了单耳环、耳轴用摆动金属安装件。
・追加了带杆端金属安装件、摆动金属安装件的型号(不必再另行配备)。
・带磁性开关(CDM2-Z系列:CDM2,CDM2W,CDM2K,CDM2KW,
CDM2R,CDM2RK,CDM2□P,CDBM2)。
型号 | 系列 | 动作方式 | 缸筒内径(mm) |
---|---|---|---|
标准型 | CM2-Z | 单杆双作用 | 20,25,32,40 |
标准型 | CM2-Z | 单作用(伸・缩) | 20,25,32,40 |
标准型 | CM2W-Z | 双杆双作用 | 20,25,32,40 |
杆不回转型 | CM2K-Z | 单杆双作用 | 20,25,32,40 |
杆不回转型 | CM2K-Z | 单作用(伸・缩) | 20,25,32,40 |
杆不回转型 | CM2KW-Z | 双杆双作用 | 20,25,32,40 |
直接安装型 | CM2R-Z | 单杆双作用 | 20,25,32,40 |
杆不回转型 直接安装型 | CM2RK-Z | 单杆双作用 | 20,25,32,40 |
集中配管型 | CM2□P | 单杆双作用 | 20,25,32,40 |
带端锁 | CBM2 | 单杆双作用 | 20,25,32,40 |
低摩擦型 | CM2Q | 单杆双作用 | 20,25,32,40 |
Standardization of internal threads at the front end of the rod.
Improved operability of magnetic switches and easier position
adjustment.
Added single earrings and swinging metal mounting parts for the ear
shaft.
Added models with rod end metal mounting parts and swing metal
mounting parts (no need to be equipped separately).
。With magnetic switch (CDM2-Z series: CDM2, CDM2W, CDM2K,
CDM2KW,
CDM2R , CDM2RK , CDM2=P , CDBM2 )
