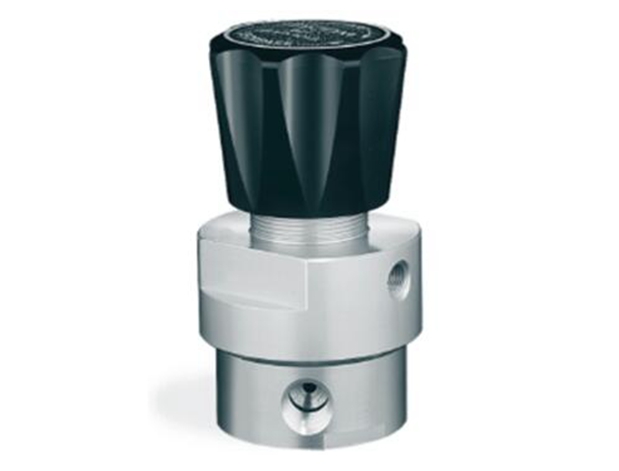

TESCOM减压阀pressure reducing valveDA
绝对减压
最大入口压力 4,500 PSIG/出口负压范围- 350 PSIG
高度灵敏/快速响应
DA 系列
技术规格
❏ 工作参数
压力等级根据ANSI/ASME B31.3标准
最大入口压力. . . . . . . . . . . . . . . . . . . . 4,500 PSIG
设计试验压力. . . . . . . . . . . . . . . 150% 最大额定压力
泄漏. . . . . . . . . . . . . . . . . . . . . . 内部,无气体泄漏
工作温度1. . . . . . . . . . . . . . . . . . -15° F 至 +165° F
(-25° C 至 +73° C)
流量. . . . . . . . . . . . . . . . . . . . . . . . . . . . Cv = 0.06
最大工作扭矩. . . . . . . . . . . . 30 in. - lbs. (3.39 Nm)
1 有关从 -65°F 至 +400°F的扩展温度范围请向工厂咨询.
❏ 接触介质的材料
阀体. . . . . . . . . . . . . . . . . . . . . . . . . . 黄铜或铝镀镍
隔板 . . . 丁晴橡胶、乙丙橡胶或 Viton® (氟化橡胶)
阀座. . . . . . . . . Teflon® (入口最大压力 500 PSIG),
CTFE (三氟氯乙烯)或 Vespel® (聚酰亚胺)
摩擦衬套(内部) . . . . . . . . . Teflon® (聚四氟乙烯)
摩擦衬套(内部) . . . . . . . . . . . . . . . . 316 不锈钢
滤清器(40 微米) . . . . . . . . . . . . . . . 316 不锈钢
其余部件 . . . . . . . . . . . . . . . . . . . . 300 系列不锈钢
TESCOM pressure reducing valve DA
Absolute decompression
Maximum inlet pressure 4500 PSIG/outlet negative pressure range -350 PSIG
Highly sensitive/responsive
DA series
technical specifications
Operating parameters
Pressure rating according to ANSI/ASME B31.3 standard
Maximum inlet pressure 4,500 PSIG
Design test pressure 150% maximum rated pressure
Leakage Internal, no gas leakage
Working temperature 1.. -15 ° F to+165 ° F
(-25 ° C to+73 ° C)
Flow rate Cv = 0.06
Maximum working torque 30 in. - lbs. (3.39 Nm)
Please consult the factory for an extended temperature range from -65 ° F to+400 ° F
Materials in contact with the medium
Valve body Brass or aluminum nickel plated
Partition board NBR, EPDM or Viton ® (Fluorinated rubber)
Valve seat Teflon ® (Maximum inlet pressure 500 PSIG),
CTFE or Vespel ® (Polyimide)
Friction lining (internal) Teflon ® (PTFE)
Friction lining (internal) 316 stainless steel
Filter (40 microns) 316 stainless steel
Other components 300 series stainless steel
