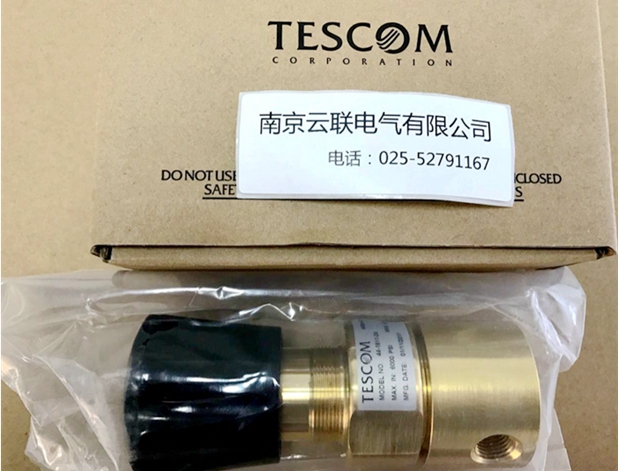

TESCOM减压阀pressure reducing valve44-1100
高压/减压
最大入口压力 6,000 PSIG 及 10,000 PSIG/出口压力范围 6,000 PSIG 以下
自排气/高度灵敏
44-1100 系列
技术规格
❏ 工作参数
压力等级根据 ANSI/ASME B31.3标准
最大额定入口压力:
不锈钢 . . . . . . . . . . . . . . . . . . . . . . 10,000 PSIG
黄铜 . . . . . . . . . . . . . . . . . . . . . . . . 6,000 PSIG
出口压力范围. . . . . . . . . . . 0-500, 0-800, 10-1500,
15-2500, 25-4000, 50-6000 PSIG
设计试验压力. . . . . . . . 最大额定入口压力的 150%
泄漏. . . . . . . . . . . . . . . . . . . . . . . . . . . 无气体泄漏
工作温度 . . . . . . . . . . . . . . . . . . -40° F 至 +165° F
(-40° C 至 +75° C)
额定流量 . . . . . . . . . . . . . . . . . . . . . . . . Cv = 0.06
最大工作扭矩. . . . . . . . . . . 35 英寸·磅 (3.95 Nm)
❏ 接触介质的材料
阀体. . . . . . . . . . . . . . . . . 黄铜,303或316 不锈钢
滤清器:
黄铜阀体 . . . . . . . . 40 微米滤清器 (公称) - 黄铜
不锈钢阀体. . 15 微米滤清器 (公称) - 316 不锈钢
主阀阀座 . . . . . . . . . . . . . . . . . . . . . . . . . . Vespel®
排气阀阀座 . . . . . . . . . . . . . . . . . . . . . . . . . . CTFE
密封件 . . . . . . . . . . . . . . . . . . . . . . . . . . . . Buna-N
备用密封圈 . . . . . . . . . . . . . . . . . . . . . . . . . Teflon®
其余部件 . . . . . . . . . . . . . . . . . . . . 300 系列不锈钢
有关其他材料及改动,请向工厂咨询。
❏ 清洁. . . . . . . . . . . . . . . . . CGA 4.1 及 ASTM G93
❏ 重量 . . . . . . . . . . . . . . . . . . . . 4.75 磅 (2.15 kg)
TESCOM pressure reducing valve 44-1100
High pressure/reduced pressure
Maximum inlet pressure 6000 PSIG and 10000 PSIG/outlet pressure range below 6000 PSIG
Self exhaust/highly sensitive
44-1100 series
technical specifications
Operating parameters
Pressure rating according to ANSI/ASME B31.3 standard
Maximum rated inlet pressure:
Stainless steel 10,000 PSIG
Brass 6,000 PSIG
Outlet pressure range 0-500, 0-800, 10-1500,
15-2500, 25-4000, 50-6000 PSIG
Design test pressure 150% of maximum rated inlet pressure
Leakage No gas leakage
Working temperature- 40 ° F to+165 ° F
(-40 ° C to+75 ° C)
Rated flow rate Cv = 0.06
Maximum working torque 35 inches · pounds (3.95 Nm)
Materials in contact with the medium
Valve body Brass, 303 or 316 stainless steel
Filter:
Brass valve body 40 micron filter (nominal) - brass
Stainless steel valve body 15 micron filter (nominal) -316 stainless steel
Main valve seat Vespel ®
Exhaust valve seat CTFE
Seals Buna-N
云联电气 技术 咨询
报价 inquiry njxj888@163.com
Spare sealing ring Teflon ®
Other components 300 series stainless steel
Please consult the factory for other materials and modifications.
Cleaning CGA 4.1 and ASTM G93
Weight 4.75 pounds (2.15 kg)
