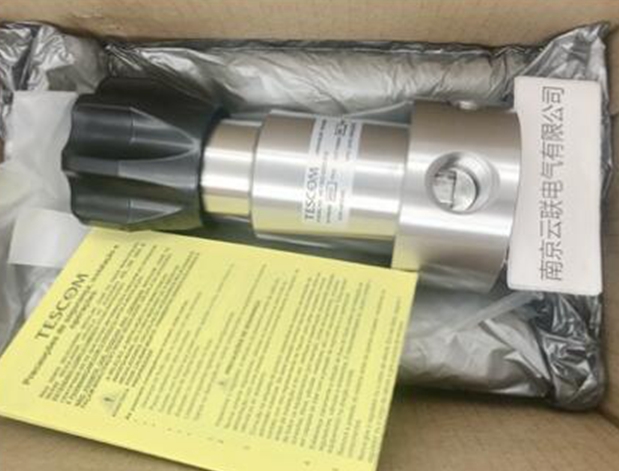

TESCOM调节阀 regulating valve 44-1322-2082-019减压阀
TESCOM减压阀44-1300
高流量/高压
最大压力范围 3750 PSIG (黄铜), 4500 PSIG (不锈钢):
0 - 1500 PSIG 出口减压
44-1300 系列
技术规格
❏ 工作参数
压力等级根据 ANSI/ASME B31.3标准
最大工作压力:
不锈钢阀体 . . . . . . . . . . . . . . . . . . . 4,500 PSIG
黄铜阀体 . . . . . . . . . . . . . . . . . . . . 3,750 PSIG
出口压力范围 . . . . . . . . . . . . . . . . . . 0-300, 0-600,
0-1000 & 0-1500 PSIG
设计试验压力. . . . . . . . . . . . . . 额定压力值的150%
泄漏. . . . . . . . . . . . . . . . . . . . . . . . . . . 无气体泄漏
工作温度1 . . . . . . . . . . . . . . . . . -15° F 至 +220° F
(-25° C 至 +104° C)
额定流量:2
1/4" 主阀 . . . . . . . . . . . . . . . . . . . . . . . Cv = 0.8
3/8" 主阀 . . . . . . . . . . . . . . . . . . . . . . . Cv = 2.0
1有关从 -65°F 至 +400°F的扩展温度范围请向工厂咨询。
2出口交叉孔引起的二级压降会对额定流量产生重大影响。 对关键尺寸
需要使用流量曲线决定。
❏ 接触介质的材料
阀体. . . . . . . . . . . . . . . . . 黄铜, 303 或 316 不锈钢
阀座,主阀:
300 PSIG 出口压力. . . . . . . . . . . . . . . . . Teflon®
600, 1000 & 1500 出口压力 . . . . . . . . . . . CTFE
阀座,排气阀:
300 & 600 PSIG 出口压力. . . . . . . . . . . . Teflon®
1000 & 1500 PSIG 出口压力. . . . . . . . . . . CTFE
O 型圈 . . . . . . . . . . . . . . . . . . . . . . . . . . . Viton-A®
备用密封圈 . . . . . . . . . . . . . . . . . . . . . . . . . Teflon®
垫圈. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CTFE
其余部件 . . . . . . . . . . . . . . . . . . . 300 系列不锈钢,
17-4, 17-7 不锈钢, Teflon® 及黄铜
有关其他材料及改动,请向工厂咨询。
❏ 清洁. . . . . . . . . . . . . . . . CGA 4.1 及 ASTM G93
❏ 重量 (不带压力表) . . . . . . . . . . . 6.25 磅 (2.83 kg)
TESCOM regulating valve 44-1322-2082-019 pressure reducing valve
TESCOM pressure reducing valve 44-1300
High flow/high pressure
Maximum pressure range 3750 PSIG (brass), 4500 PSIG (stainless steel):
0-1500 PSIG outlet pressure reduction
44-1300 series
technical specifications
Operating parameters
Pressure rating according to ANSI/ASME B31.3 standard
Maximum working pressure:
Stainless steel valve body 4,500 PSIG
Brass valve body 3,750 PSIG
Outlet pressure range 0-300, 0-600,
0-1000 & 0-1500 PSIG
Design test pressure 150% of rated pressure value
Leakage No gas leakage
Working temperature 1- 15 ° F to+220 ° F
(-25 ° C to+104 ° C)
Rated flow rate: 2
1/4 "main valve... Cv=0.8
3/8 "main valve... Cv=2.0
Please consult the factory for an extended temperature range from -65 ° F to+400 ° F.
The secondary pressure drop caused by the 2-outlet cross hole will have a significant impact on the rated flow rate. For critical dimensions
It needs to be determined using a flow curve.
Materials in contact with the medium
Valve body Brass, 303 or 316 stainless steel
Valve seat, main valve:
300 PSIG outlet pressure Teflon ®
Outlet pressure of 600, 1000&1500 CTFE
Valve seat, exhaust valve:
300&600 PSIG Outlet Pressure Teflon ®
1000&1500 PSIG outlet pressure CTFE
O-ring Viton-A ®
Spare sealing ring Teflon ®
云联电气 技术 咨询
报价 inquiry njxj888@163.com
Washers CTFE
Other components 300 series stainless steel,
17-4, 17-7 stainless steel, Teflon ® And brass
Please consult the factory for other materials and modifications.
Cleaning CGA 4.1 and ASTM G93
Weight (without pressure gauge) 6.25 pounds (2.83 kg)
